51 49 120 Removing and installing/replacing cargo cover

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove PARTITION WALL MOUNTING COVER
Remove FRONT LUGGAGE COMPARTMENT RECESS PANEL
Remove CROSS MEMBER COVER

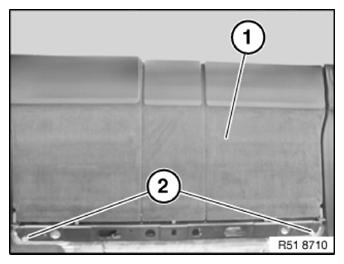

Loosen bolts (2) from cargo cover frame (1).

Fig 1: Identifying Cargo Cover Frame Bolts

G09879686

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

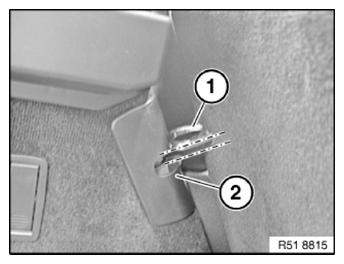

Left and right strikers (1) must not brush at top against lock cover (2).

Fig 2: Identifying Right Strikers At Lock Cover

G09879687

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

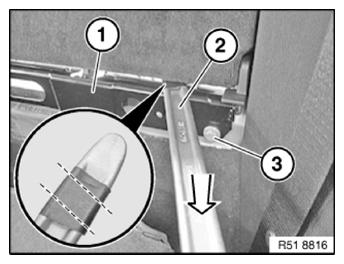

To avoid damage, wrap tire iron (2) as pictured.

Tighten screw (3) loosely.

Carefully position cargo cover frame (1) with tire iron (2) in downward direction (max. iron travel = frame hole stop at screw).

Tighten screw (3).

Tightening torque 51 47 1AZ .

NOTE: Check freedom of movement of lock striker again.

Fig 3: Positioning Cargo Cover Frame With Tyre Iron

G09879688

Courtesy of BMW OF NORTH AMERICA, INC.

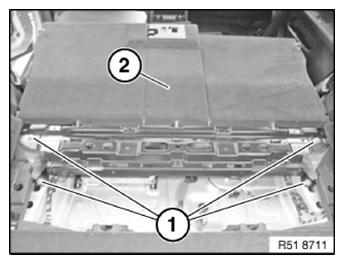

Fold down cargo cover toward the front.

Loosen bolts (1) from cargo cover frame (2).

Tightening torque 51 47 1AZ .

Installation:

Center cargo cover (2).

Completely remove cargo cover with the aid of a 2nd person.

Fig 4: Identifying Bolts From Cargo Cover Frame

G09879689

Courtesy of BMW OF NORTH AMERICA, INC.
