51 47... Removing and installing/replacing outer left or right screen shield

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

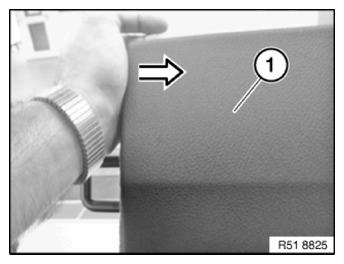

Tap screen shield (1) with ball of hand outwards to release and remove.

Fig 1: Removing Screen Shield

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Plastic brackets (2) on screen shield (1) must not be damaged.

Plastic brackets (2) must engage neatly.

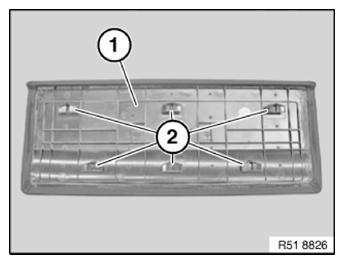

Fig 2: Identifying Plastic Brackets On Screen Shield

Courtesy of BMW OF NORTH AMERICA, INC.
