51 47... Removing and installing/replacing damper for screen

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

Remove SCREEN

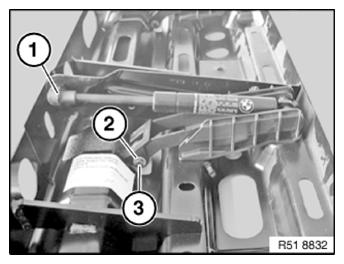

REMOVE BALL SOCKET (1) .

Release circlip (2) and remove pin (3).

Fig 1: Identifying Circlip And Pin

G09879609

Courtesy of BMW OF NORTH AMERICA, INC.

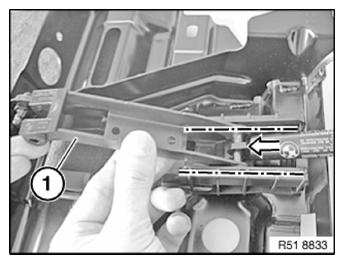

Feed damper (1) towards front/top.

Fig 2: Removing Damper

G09879610

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

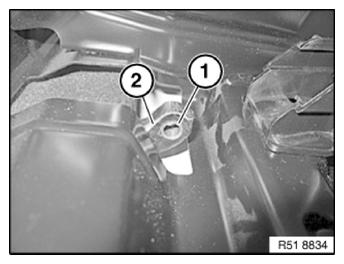

Bush (1) of lever for screen (2) must not be damaged and must be installed.

Fig 3: Identifying Bush And Lever For Screen

G09879611

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

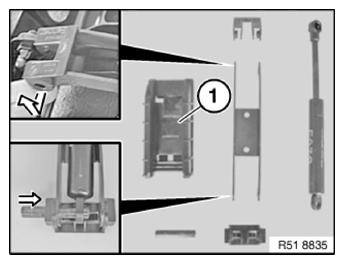

Assemble individual parts of damper unit according to illustration.

Install slide housing from damper unit (1) on screen frame.

Fig 4: Installing Slide Housing From Damper Unit

G09879612

Courtesy of BMW OF NORTH AMERICA, INC.
