51 47... Removing and installing/replacing cargo cover (middle)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).

Necessary preliminary tasks:

Remove SCREEN (unit)
Remove CARGO COVER, LEFT AND RIGHT
Remove CARGO COVER DAMPING UNIT (middle)

Lever guide bush (1) on left and right out of cargo cover (middle).

Installation note:

Replace guide bush (1).

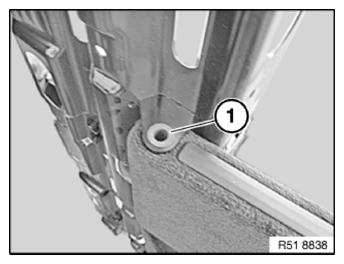

Fig 1: Identifying Guide Bush

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out cargo cover (1) in direction of arrow.

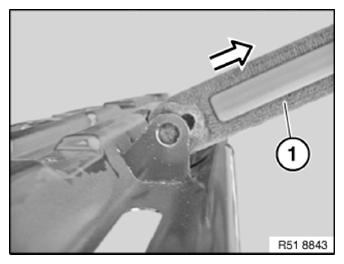

Fig 2: Pulling Out Cargo Cover

Courtesy of BMW OF NORTH AMERICA, INC.
