51 47 441 Removing and installing/replacing carpet under rear seat
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Release rear seat backrest frame on left and right. See RIGHT REAR SEAT BACKREST FRAME and LEFT REAR SEAT BACKREST FRAME .
- Remove TRIM ON C-PILLAR at bottom right and left
- Detach END FITTING FROM SEAT BELT , left and right

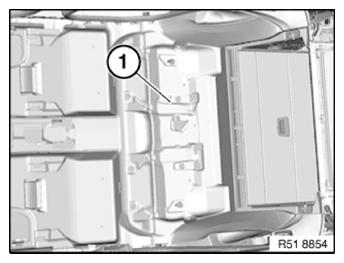

Remove carpet (1) towards top and if necessary feed out cable.
