51 43 230 Removing and installing/replacing trim on C-pillar at bottom left or right

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR ENTRANCE COVER STRIP
Remove SCREEN

Depending on equipment specification:

Pry off speaker cover.

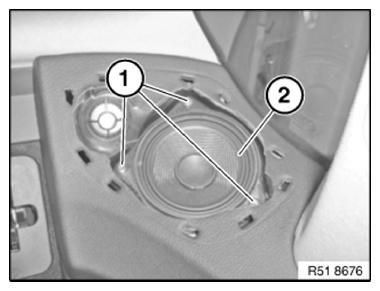

Release screws (1) on speaker (2).

Disconnect plug connections underneath and remove speaker (2).

Installation:

Make sure tweeter wiring is correctly routed.

Fig 1: Identifying Screws On Speaker

G09879526

Courtesy of BMW OF NORTH AMERICA, INC.

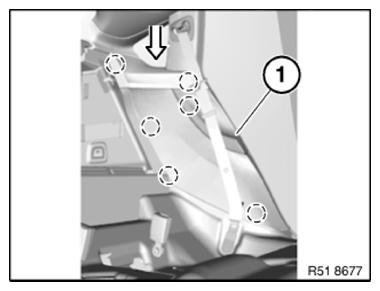

Unclip bottom trim on C-pillar (1) at the marked sites.

Pay attention to retaining tab (arrow) when removing cover.

Fig 2: Unclipping Trim On C-Pillar

G09879527

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement

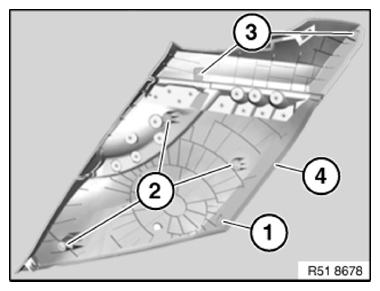

Modify clips (1), (2) and (3) on cover (4).

Natural
White
Blue

Fig 3: Identifying Clips On Cover
Courtesy of BMW OF NORTH AMERICA, INC.
