64 11 832 Replacing servodrive for middle right ventilation flap (High A/C system)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove CENTRAL INFORMATION DISPLAY
Remove RIGHT GLOVEBOX WITH HOUSING

Position of actuator drive:

OVERVIEW OF ACTUATOR DRIVES ON HEATER/AIR CONDITIONER

Release screw (1).

Unfasten screws (2).

Installation:

Replace screws (2).

Take off holder (3).

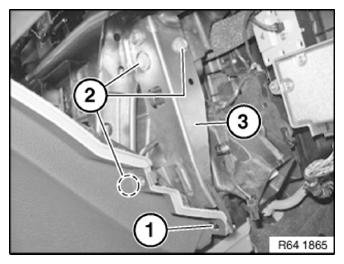

Fig 1: Identifying Actuator Drives On Heater/Air Conditioner Screws

G09881542

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove actuator drive (2).

Unlock plug connection (3) and disconnect.

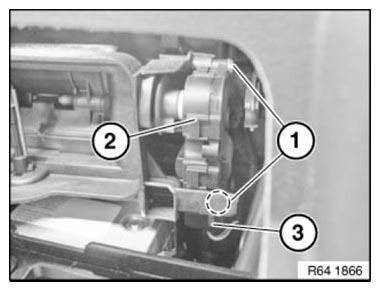

Fig 2: Identifying Plug Connection And Actuator Drive Screws

G06886216

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Servomotors must be re-addressed in the event of replacement!

Addressing can only be carried out with the BMW diagnosis system.

Service functions:

Body
Heating and A/C function
Flap motors
Re-address flap motors
