51 16 366 Removing and installing right glove box with housing

When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Necessary preliminary tasks:

• Remove TRIM FOR INSTRUMENT PANEL , bottom left
• F10/F11/F18 only: REMOVE DECORATIVE STRIP ON DASHBOARD ON RIGHT

According to equipment version

• Remove DVD CHANGER
• Remove USB INTERFACE CONNECTING SOCKET

Glovebox housing can only be removed only if connecting socket is completely removed first.

F10/F11/F18 only without DVD changer:

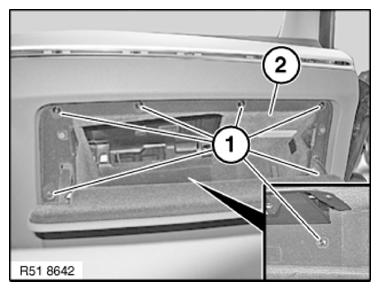

Release screws (1) and feed out cover (2).

Fig 1: Removing Screws And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

F07 only:

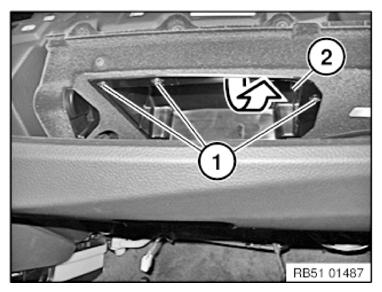

Release screws (1) on glove box (2).

Tightening torque 51 16 16AZ .

Fig 2: Identifying Screws On Glove Box

Courtesy of BMW OF NORTH AMERICA, INC.

F10/F11/F18 only:

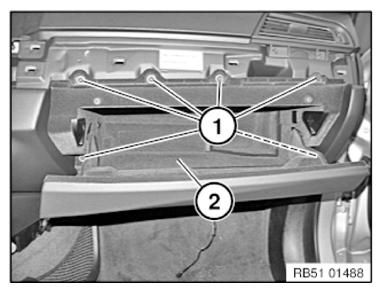

Release screws (1) on glove box (2).

Tightening torque 51 16 16AZ .

Fig 3: Identifying Screws And Glove Box

Courtesy of BMW OF NORTH AMERICA, INC.

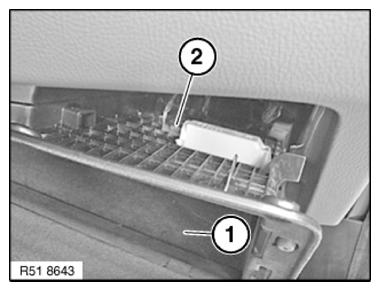

Pull glove box (1) slightly forward and unlock and disconnect plug connection (2) from glove box light.

Fig 4: Identifying Glove Box And Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

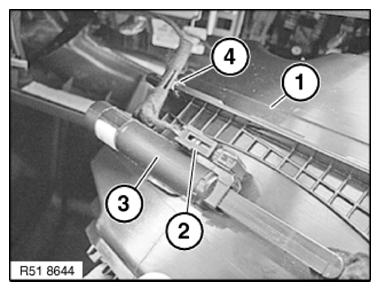

Pull out glovebox (1) further.

Unlock plug connection (2) from damper (3) and disconnect.

Pull out wiring harness clamp (4).

Feed out glovebox.

Installation note:

Only if DVD changer installed

Feed DVD changer wiring harness into glovebox housing.

Fig 5: Identifying Glove Box, Plug Connection, Damper And Wiring Harness Clamp
