65 50 057 Removing and installing/replacing Central Information Display (CID)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary work:

F01, 02, 03, 04:

Remove decorative strip on dashboard in middle

F07, 10, 11, 18:

Remove DECORATIVE STRIP ON DASHBOARD ON RIGHT

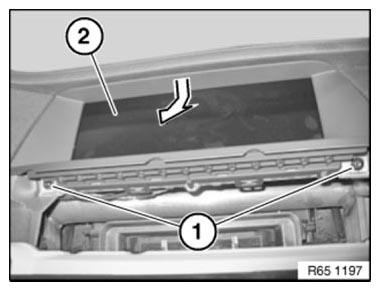

Release screws (1).

Tightening torque 65 50 1AZ .

Guide out CID (2) in direction of arrow.

Fig 1: Removing Central Information Display (CID)

G06886465

Courtesy of BMW OF NORTH AMERICA, INC.

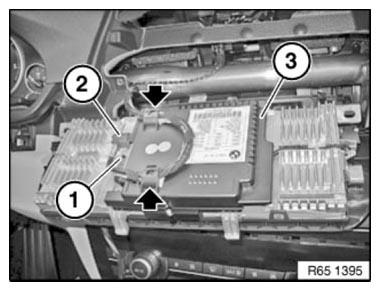

Unlock plug connections (1) and (2) and disconnect.

Remove CID (3).

Installation note:

Ensure correct cable routing.

Fig 2: Locating Plug Connections

G06886466

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

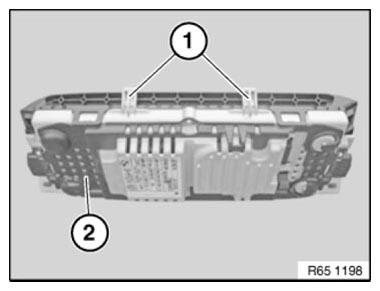

Brackets (1) on CID (2) must be seated correctly in intended dashboard guides.

Fig 3: Identifying Brackets On CID

G06886467

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
