31 21 090 Replacing left/right swivel bearing
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove FRONT WHEEL .
- Remove PULSE SENSOR from swivel bearing
IMPORTANT:
Secure swivel bearing against falling out.
Remove BRAKE DISC .
Remove upper control arm from swivel bearing. See TOP LEFT CONTROL ARM or TOP RIGHT CONTROL ARM .
Remove TRAILING LINK FROM SWIVEL BEARING
Remove TRACK ROD END FROM SWIVEL BEARING .
Remove LOWER CONTROL ARM FROM SWIVEL BEARING .
F04: Detach wheel control joint from control arm.

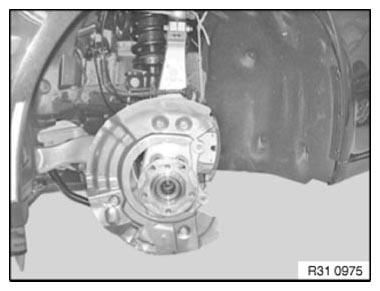

Remove swivel bearing.
Installation note:
Modify WHEEL BEARING
Modify BRAKE ANCHOR PLATE/BRAKE GUARD PLATE .
Modify cable clip/pulse sensor on swivel bearing.
After installation
- Carry out wheel alignment procedure. See ALIGNMENT CHECK WITH VEHICLE LOAD or ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT (WITHOUT VEHICLE LOAD) .
