34 52 525 Replacing one front pulse sensor

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DAMAGE (ESD PROTECTION) .

Necessary preliminary tasks:

Remove front WHEEL
Read and comply with GENERAL INFORMATION .

Open housing cover.

Disconnect plug connection (1).

Installation note:

Ensure proper locking of plug connection and proper seating of rubber grommets.

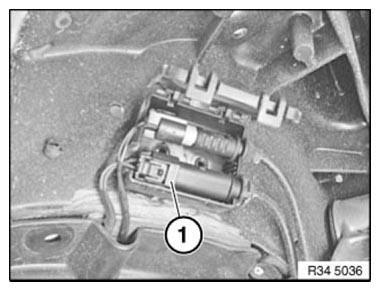

Fig 1: Identifying Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Disengage line (1) along marked lines from holders.

Installation note:

Ensure proper locking of the holders and proper seating of the line in the brackets.

Fig 2: Identifying Brake Pad Sensor Line

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) and withdraw pulse sensor (2) from bore hole.

Installation note:

Tightening torque 31 51 3AZ .

Clean bore for pulse sensor and lubricate with Staburags NBU 12/K lubricating grease.

IMPORTANT: Prior to installation, check sensor head for damage and replace if necessary.

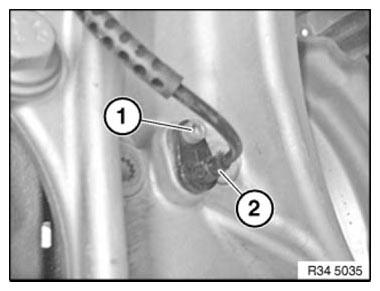

Fig 3: Identifying Pulse Sensor And Screw

Courtesy of BMW OF NORTH AMERICA, INC.
