31 12 050 Removing and installing/replacing left or right trailing link

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT WHEEL .
Remove FRONT ASSEMBLY UNDERSIDE PROTECTION .

Release screws (1).

Remove front wheel arch cover (2) from bumper trim.

Installation note:

Make sure wheel arch cover is correctly positioned.

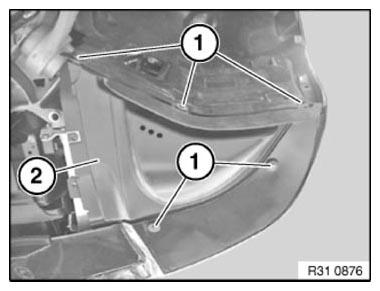

Fig 1: Identifying Wheel Arch Cover And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove screw (2).

Tightening torque 31 12 1AZ .

Remove tension strut (3) from front axle support.

Installation note:

Replace screw and nut.

Observe assembly sequence.

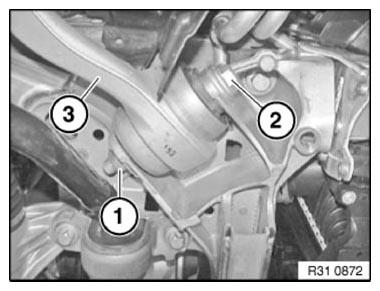

Fig 2: Identifying Tension Strut, Nut, And Screw

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Do not release tension strut from swivel bearing with impact tool.
The swivel bearing must be removed if the steel bushing moves.
Rubber boot of trailing link must not be damaged!
Do not pull stainless steel ring off journal.

Release nut (1) and remove trailing link (2) from swivel bearing.

Tightening torque 31 12 2AZ .

Installation note:

Replace self-locking nut.

Keep tension strut to swivel bearing connection clean and free from oil and grease.

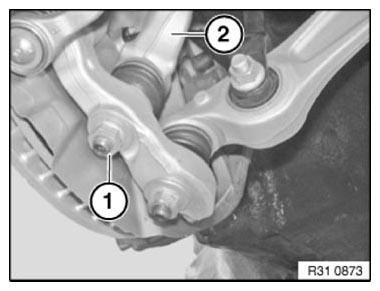

Fig 3: Identifying Trailing Link And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Risk of damage!

Observe assembly sequence.

Trailing link must be screwed in normal position!

(Adjustment of normal position, see below).

Installing tension strut:

Install trailing link on front axle support (do not tighten down screw connection).
Adjust trailing link to swivel bearing to dimension (A) and tighten on front axle support.
Tightening torque 31 12 1AZ .

Dimension (A) = 2 cm (vehicle on vehicle hoist, spring strut rebounded)

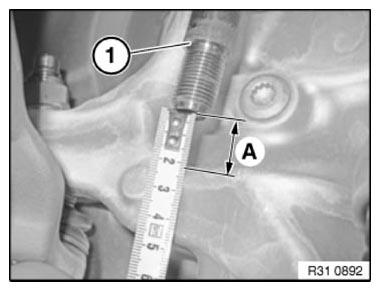

Fig 4: Identifying Dimension For Adjusting Trailing Link To Swivel Bearing
Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Installing the trailing link to dimension (A) corresponds to the normal position in the compressed state!
Press trailing link into swivel bearing and tighten trailing link/swivel bearing.
Tightening torque 31 12 2AZ .
