34 11 220 Removing and installing/replacing both front brake discs

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

34 1 280

Necessary preliminary tasks:

Remove FRONT WHEELS
Remove and clean BRAKE PADS

NOTE: After completing repair work, read and comply with notes on BREAKING IN NEW BRAKE DISCS/BRAKE PADS .

Check minimum brake disc thickness:

Position special tool 34 1 280 at three measuring points in area (1) and measure.
Compare measuring result and lowest value with SETPOINT VALUE .

NOTE: If the brake discs are replaced, you must also fit new brake pads.
Brake discs may only be replaced in pairs (on each axle).

Fig 1: Checking Minimum Brake Disc Thickness

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: New brake pads may only be fitted if the brake disk thickness is greater than the MINIMUM BRAKE DISC THICKNESS (MIN TH).

Release screws (1). Remove brake-caliper support.

Installation note:

Tightening torque 34 11 2AZ .

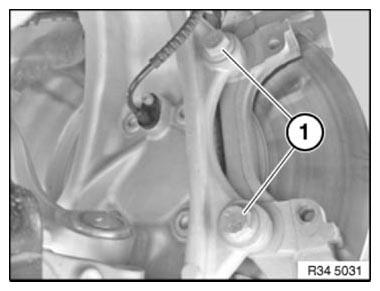

Fig 2: Identifying Brake-Caliper Support Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: To release brake disc: Do not under any circumstances strike friction ring with a hammer or similar!
If necessary, carefully tap on base of brake disc chamber with a rubber mallet.
Clean contact surface of brake disc at wheel hub thoroughly and remove traces of corrosion.
Unevenness on contact surface may result in distortion of brake disc!

Release screw (1) and remove brake disc (2).

Fig 3: Identifying Brake Disc Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace screw.

Tightening torque 34 11 1AZ .
