31 35 000 Removing and installing/replacing front anti-roll bar

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT UNDERBODY PROTECTION .
Remove BOTH ANTI-ROLL BAR LINKS FROM ANTI-ROLL BAR .
F12 All-wheel drive vehicle: Remove the front stiffening plate.
F06 M6, F12 (without all-wheel drive), F13, F10-M5: Remove STIFFENING PLATE .

Release screws (1).

Tightening torque 31 35 1AZ

Remove anti-roll bar (2) downwards.

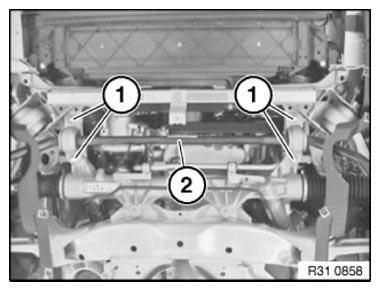

Fig 1: Identifying Anti-Roll Bar And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

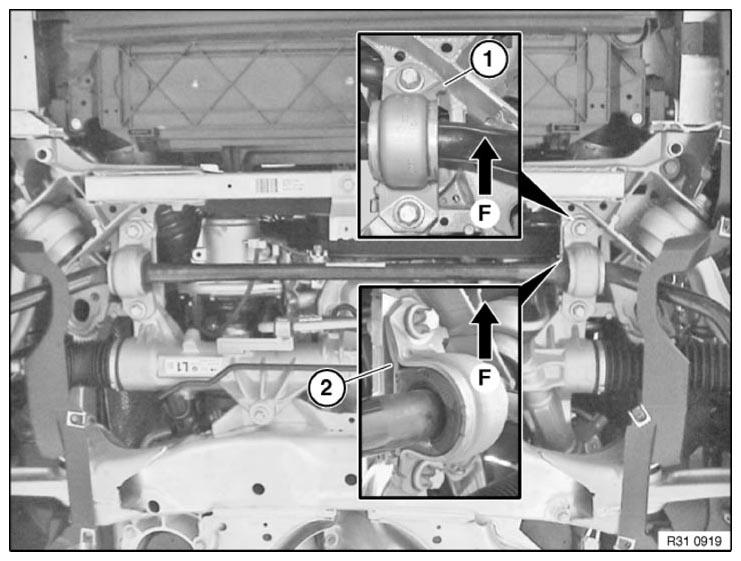

Fig 2: Identifying Installation Locations Of Retaining Bracket And Mounting Plate

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace screws.

Pay attention to installation location of retaining bracket and mounting plate!

Nose (1) on retaining bracket must point left in direction of travel (F)
Curve (2) on lower mounting plate points to rubber bearing
