51 47 490 Removing and installing/replacing underbody protection (front)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Unscrew all bolts.

Remove underbody protection (1) in direction of arrow from bumper panel (2).

Installation note:

Make sure the underbody protection (1) is correctly seated.

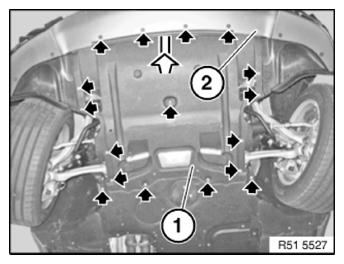

Fig 1: Locating Underbody Protection At Bumper Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Only F18 PHEV

Release screws (1).

Tightening torque 51 75 3AZ .

Unfasten screws (2).

Tightening torque 51 75 3AZ .

Release the rest of the marked screws and remove the underbody protection (3).

Tightening torque 51 75 1AZ .

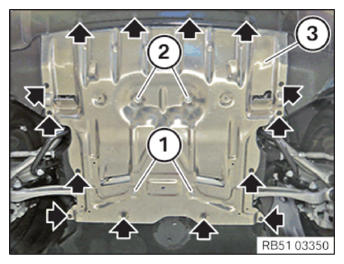

Fig 2: Locating Screws Of Underbody Protection

Courtesy of BMW OF NORTH AMERICA, INC.
