31 35 005 Removing and installing/replacing push rod (anti-roll bar link) for left/right anti-roll bar

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT: Observe SAFETY INSTRUCTIONS for raising the vehicle

Unscrew nuts (1).

Tightening torque 31 35 2AZ .

Remove anti-roll bar link (2).

Installation note:

Replace self-locking nut (1).

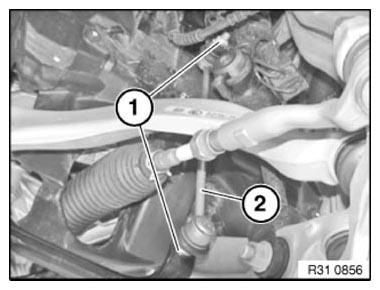

Fig 1: Identifying Anti-Roll Bar Link And Nuts
G09877238Courtesy of BMW OF NORTH AMERICA, INC.
