31 11 040 Remove and install/replace stiffening plate (all-wheel drive)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe SAFETY INSTRUCTIONS
for raising the vehicle
Driving without stiffening plate is not permissible!
Driving without stiffening plate is not permissible!
Necessary preliminary tasks:

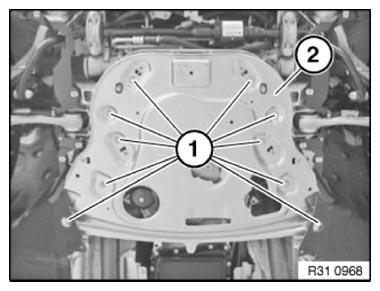

Release screws (1).
Remove thrust panel (reinforcement plate) (2).
Installation note:
Replace screws (1).
Tightening torque 31 10 2AZ .
