32 41 331 Replacing pressure line for power steering, from steering gear to junction (AWD with N55 engine)
WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
DANGER OF POISONING
if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
RISK OF INJURY if oil comes into contact with eyes and skin!
IMPORTANT:
Adhere to the utmost cleanliness. Do not allow any dirt to enter the hydraulic system.
Close off line connections with seal plugs.
Close off line connections with seal plugs.
Recycling
Catch and dispose of hydraulic fluid in a suitable collecting vessel.
Necessary preliminary tasks
- Draw off and dispose of hydraulic fluid from oil reservoir
- Remove underbody protection at front and rear. See FRONT UNDERBODY PROTECTION and REAR UNDERBODY PROTECTION .
- Remove front stiffening plate (F12 all-wheel drive vehicles)
- Remove CHARGE-AIR DUCT
- Remove FAN COWL
- Remove AIR CONDITIONING COMPRESSOR
- Remove POWER STEERING PUMP for hydraulic steering

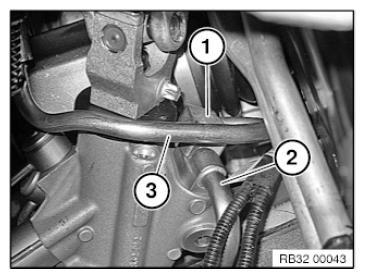

Release screw (1) on steering box and pull off pressure line (3).
Tightening torque 32 41 5AZ .

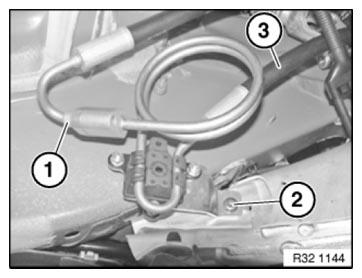

Release screw (1) and disconnect block screw connection.
Tightening torque 32 41 11AZ .
Release screw (2).
Tightening torque 32 41 12AZ .
Remove pressure line (3) from above.
Pressure lines must be provided with suitable plugs immediately after removal!
Installation note:
Replace all sealing rings.
Make sure hydraulic line is laid without tension and with sufficient distance to adjoining components.
After installation
- Fill and bleed HYDRAULIC SYSTEM
- Check line connections for leaks
- Dynamic Drive: CARRY OUT START-UP DYNAMIC DRIVE OPERATION
