13 71 170 Removing air duct (N55)

WARNING: This page does not describe the selected car, but rather 21 other vehicles, including the 2017 BMW 550i GT xDrive, 2017 BMW 535i GT xDrive, 2017 BMW 535i GT, 2016 BMW 550i GT xDrive, and 2016 BMW 535i GT xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove CLEAN AIR PIPE .
Remove FAN COWL .
Remove right charge-air duct.

Release screw (1).

Tightening torque 13 71 9AZ .

Release screw (2) on exhaust turbocharger.

Tightening torque 13 71 8AZ .

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

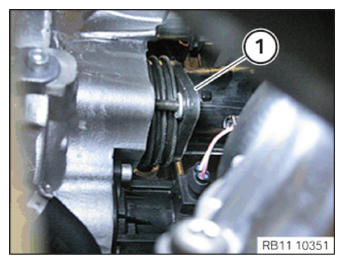

Detach air duct (1) from turbocharger.

Fig 2: Identifying Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

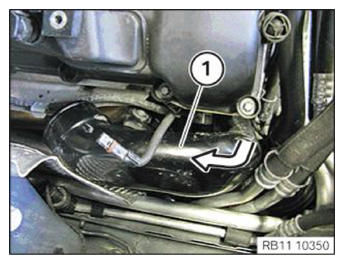

Feed out air duct (1) in direction of arrow and remove.

Fig 3: Feeding Out Air Duct

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
