31 21 090 Replacing left / right swivel bearing

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove FRONT WHEEL.
Remove PULSE SENSOR from swivel bearing.

IMPORTANT: Secure swivel bearing against falling out.

Remove BRAKE DISC.

Remove upper wishbone from swivel bearing . See 31 12 002 REMOVING AND INSTALLING/REPLACING TOP LEFT WISHBONE or 31 12 003 REMOVING AND INSTALLING / REPLACING TOP RIGHT WISHBONE .

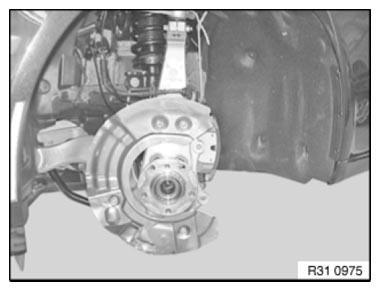

Fig 1: Identifying Swivel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Remove TRAILING LINK FROM SWIVEL BEARING .

Remove TRACK ROD END FROM SWIVEL BEARING. .

Remove LOWER WISHBONE FROM SWIVEL BEARING. .

F04: Detach wheel control joint from wishbone.

Remove swivel bearing.

Installation note:

Modify WHEEL BEARING

Modify BRAKE ANCHOR PLATE/BRAKE GUARD PLATE.

Modify cable clip/pulse sensor on swivel bearing.

After installation

Carry out wheel alignment procedure . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
