31 21 180 Replacing bearings (wheel hub) for front wheel

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

Remove BRAKE DISC .

NOTE:

Check brake pads and RENEW if necessary!

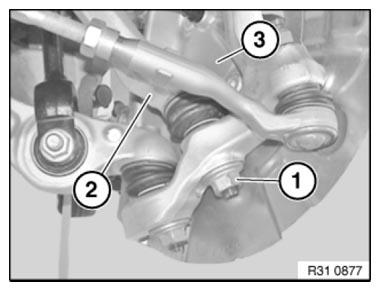

Slacken nut (1).

Tightening torque 31 12 2AZ.

Remove trailing link (2) from swivel bearing (3).

Fig 1: Identifying Trailing Link, Swivel Bearing And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

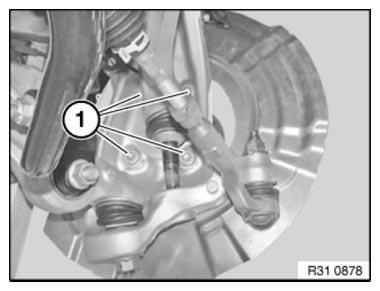

Release screws (1) and remove mount.

Tightening torque 31 21 1AZ.

Fig 2: Identifying Bearing Mount Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Replace screws.

Keep threaded holes (1) clean and free from grease.

Keep contact surface (2) of wheel bearing and swivel bearing clean and free from grease.

Fig 3: Installing Threaded Holes To Contact Surface Of Wheel Bearing

Courtesy of BMW OF NORTH AMERICA, INC.
