31 12 003 Removing and installing / replacing top right wishbone

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Wishbones with + or - marking (see Fig 1) are camber correction arms:

- Underdimension variant

+ Overdimension variant

These camber correction arms are used to correct the camber values by 30 minutes. To be used only if the tolerance values are exceeded or undershot!

An unmarked wishbone is a standard part.

Fig 1: Identifying Control Arm Under And Over Dimension Variant

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary work

Remove FRONT WHEEL .
N63: Remove air duct to the intake silencer housing.
N74: Remove right intake silencer housing.
N47, N53, N54, N57, N63, N74: REMOVE RIGHT ELECTRONICS BOX ON WHEEL ARCH.
N52T: Remove expansion tank for coolant on right wheel arch.

N63 (with water-cooled DME control unit)

Disconnect all connectors from DME control unit (1) and place to one side.

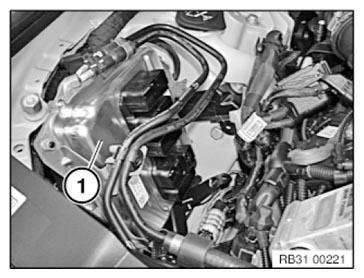

Fig 2: Identifying DME Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The screw connection for the spring strut / wishbone on the bottom will not be released!

Further procedure is identical to:

Removing and installing/replacing TOP LEFT CONTROL ARM .
