34 11 250 Replacing front left or right brake anchor plate/guard plate

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

REMOVE front brake disc.

Release screws (1) and remove brake guard plate (2).

Installation note:

Tightening torque 34 11 3AZ .

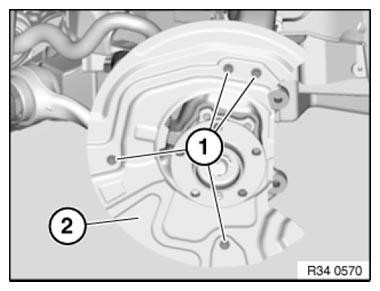

Fig 1: Identifying Brake Guard Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.
