51 13 402 Removing and installing/replacing handle strip

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks

REMOVING REAR-END TRIM SECTION:
Remove TRIM ON REAR LID .
Remove PANEL FOR REAR LID .

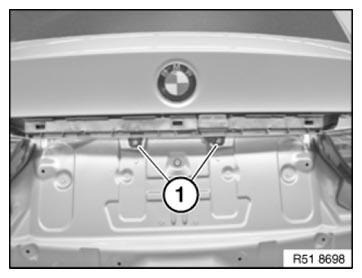

Release screws (1).

Tightening torque 51 13 2AZ .

Fig 1: Identifying Handle Strip Screw

Courtesy of BMW OF NORTH AMERICA, INC.

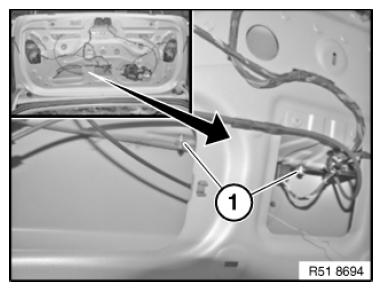

Slacken nut (1).

Tightening torque 51 13 3AZ .

Fig 2: Identifying Nut

Courtesy of BMW OF NORTH AMERICA, INC.

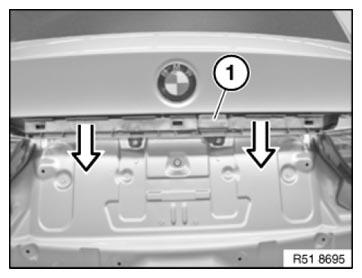

Detach handle strip (1) in direction of arrow from tailgate.

Fig 3: Removing Handle Strip From Tailgate

Courtesy of BMW OF NORTH AMERICA, INC.

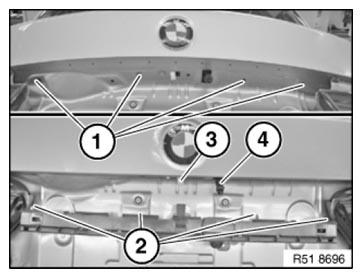

Disconnect plugs (3) and (4).

Check clips (2) for any damages. replacing if necessary.

IMPORTANT: If clip mountings (1) are removed during further operations (e.g. painting), always replace these mounting to ensure watertightness.

Fig 4: Identifying Plugs And Clip With Mounting

Courtesy of BMW OF NORTH AMERICA, INC.
