51 49 000 Removing and installing/replacing bottom tailgate trim panel tailgate

WARNING: This page is about a different car, the 2013 BMW 550i GT, 2012 BMW 550i GT, 2011 BMW 550i GT, and 2010 BMW 550i GT. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks

Remove luggage compartment lights
Detach emergency release (4)

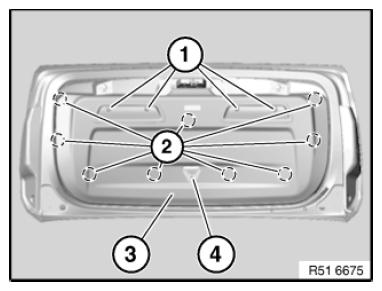

Release screws (1), unclip clamps (2) with special tool 00 9 317 and remove trim panel (3).

Tightening torque: 51 49 1AZ

Fig 1: Identifying Trim Panel, Screws And Clamps

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

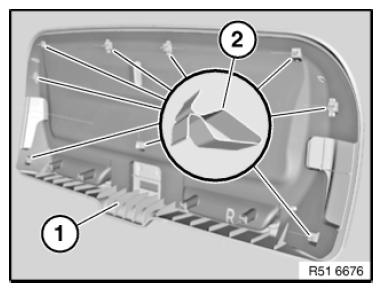

Clamps (2) on trim panel (1) must not be damaged, replace if necessary

Fig 2: Identifying Clamps And Trim Panel

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement only:

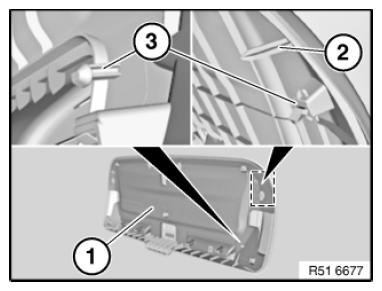

Adjust sound insulation (1) in guide (2).

Click on mounting (3).

Fig 3: Identifying Sound Insulation, Guide And Mounting

Courtesy of BMW OF NORTH AMERICA, INC.
