11 00 050 Removing and installing engine (N20)

Special tools required:

• 11 0 000 .
• 11 7 310
• 11 8 680
• 13 5 281 .
• 13 5 282 .
• 72 15 8 108 670
• 13 5 161 .
• 13 5 162 .
• 00 9 030 .

Necessary preliminary tasks:

• Disconnect negative BATTERY CABLE .
• Move ENGINE COMPARTMENT LID into service position
• Remove EXHAUST SYSTEM .
• Remove GEARBOX .
• Remove OUTPUT SHAFTS at front (all-wheel drive vehicles only)
• Drain off ENGINE OIL .
• Remove firewall upper part SOUND INSULATION .
• Remove SUSPENSION CROSS-BRACE .
• Remove INTAKE SILENCER HOUSING .
• Remove BOTTOM CLEAN AIR PIPE .
• REMOVE left charge air duct
• REMOVE right charge air duct
• Detach all coolant hoses from engine
• Remove COOLANT THERMOSTAT .
• Evacuate HEATING AND AIR CONDITIONING SYSTEM .

For removing and installing the engine, the towing hook 72 15 8 108 670 is required.

Fig 1: Identifying Towing Hook (72 15 8 108 670)

Courtesy of BMW OF NORTH AMERICA, INC.

Fold back cover (1).

Release nut underneath. Remove positive battery cable lead (2) from positive battery connection point.

Tightening torque 12 42 3AZ .

Fig 2: Identifying Positive Battery Cable Lead And Cover

Courtesy of BMW OF NORTH AMERICA, INC.

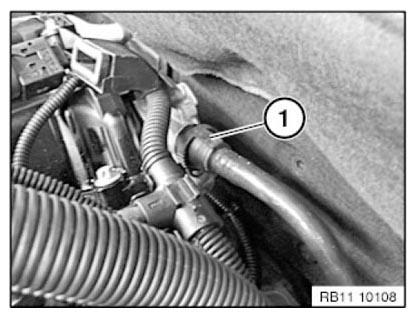

Release vacuum line (1) to vacuum pump.

Fig 3: Identifying Vacuum Line

Courtesy of BMW OF NORTH AMERICA, INC.

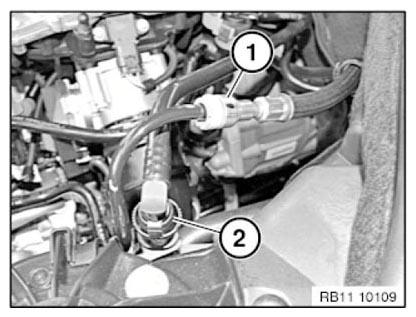

Detach the fuel line at the snap fastener (1).

Unlock tank ventilation line (2) and disconnect.

Fig 4: Identifying Fuel Line Fastener And Tank Ventilation Line Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Close off fuel line with special tool 13 5 161 .

Close off fuel line with special tool 13 5 162 .

Fig 5: Closing-Off Fuel Lines Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

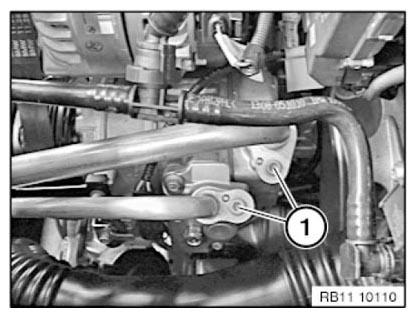

Release screws (1) and remove refrigerant lines.

Tightening torque 64 52 4AZ .

Installation note:

Replace sealing rings.

Use special tool 00 9 030 to install sealing rings without damaging them.

Fig 6: Identifying Screws Of Refrigerant Lines

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and pull off connector (1) from DME control unit.

Place engine wiring harness to one side.

Fig 7: Identifying DME Control Unit Connector

Courtesy of BMW OF NORTH AMERICA, INC.

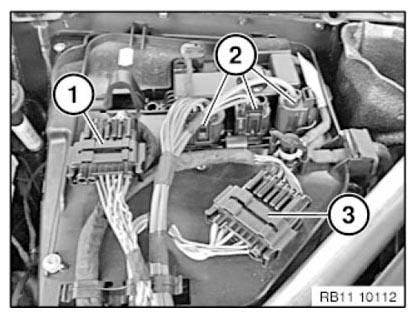

Unlock and pull off connectors (1) to (3).

Securely attach engine wiring harness to engine.

Fig 8: Identifying Connectors

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1) on engine mount on left and right.

Tightening torque: 22 11 2AZ .

Fig 9: Identifying Screws On Engine Mount

Courtesy of BMW OF NORTH AMERICA, INC.

Schematic diagram:

Screw towing eye (1) into cylinder head.

Tightening torque 11 12 5AZ .

Attach special tool 11 0 000 to engine crane.

Suspend special tool 11 0 000 only from designated mounting eyelets (2).

Fig 10: Attaching Special Tool (11 0 000) To Engine Crane

Courtesy of BMW OF NORTH AMERICA, INC.

Lift engine out with engine crane.

Assemble engine.

Check function of DME.
