13 71 000 Removing and installing/replacing intake silencer housing (N20)
WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove left TRAILING LINK .

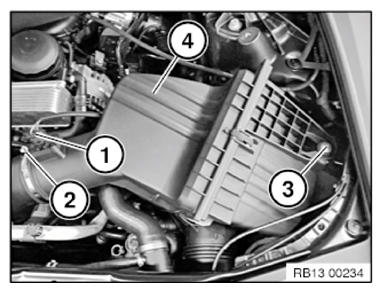

Release connector (1) on hot film air mass meter and disconnect.
Release clamp (2).
Tightening torque 13 71 2AZ .
Release screws (3).
Tightening torque
Pull intake silencer housing (4) off rubber mounts in an upward direction and remove.
Reassemble the vehicle.
