18 00 020 Removing and installing complete exhaust system (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

31 2 220

WARNING: Risk of burning!
Only carry out this repair work when the exhaust system has cooled down.

IMPORTANT: Removal of the exhaust system must be carried out with the assistance of a second person.

Support exhaust system with jack and special tool 31 2 220 or other suitable special tool and secure against falling down.

Fig 1: Supporting Exhaust System Using Special Tool (31 2 220)

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

F07, F11 only:

Remove left trailing link.

Release clamp (1).

Tightening torque 18 31 1AZ .

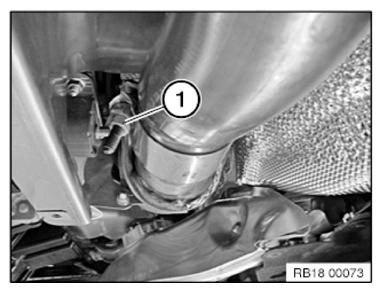

Fig 2: Identifying Exhaust System Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

F10, F11, F18 only:

Release screws (1).

Tightening torque 18 20 4AZ .

Only if auxiliary heating fitted. Release screw (2) on metering pump.

Tightening torque 18 20 5AZ .

Release screws (3) on underbody panelling.

Remove reinforcement plate (4).

Fig 3: Identifying Reinforcement Plate, Underbody Panelling And Metering Pump Screw

Courtesy of BMW OF NORTH AMERICA, INC.

F07 only:

Release screws (1).

Remove heat shield (2).

Fig 4: Identifying Heat Shield And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

F07 only:

Release screws (1).

Tightening torque 18 20 4AZ .

Only if auxiliary heating fitted. Release screw (2) on metering pump.

Tightening torque 18 20 5AZ .

Release screws (3) on underbody panelling.

Remove reinforcement plate (4).

Fig 5: Identifying Reinforcement Plate And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten nut.

Tightening torque 18 31 3AZ .

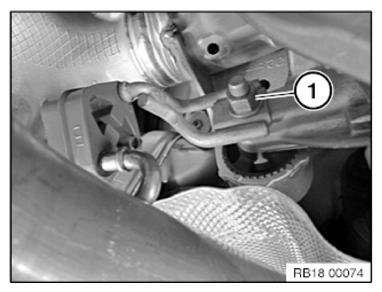

Fig 6: Identifying Rear Silencer (N20) Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Spray bolt (1) and rubber mount with lubricant 5.2 .

Release screw (1).

Installation note:

Risk of damage to screw (1) and retaining plate thread.

Observe screwing sequence .

Firstly apply nut to body at rear.
Then join bolt (1) exactly and secure. If necessary support rear silencer using a suitable jack.
Tightening torque 18 31 6AZ .

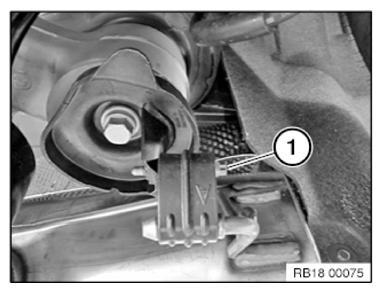

Fig 7: Identifying Join Bolt

Courtesy of BMW OF NORTH AMERICA, INC.

Detach pressure hose (1).

Slacken nut (2).

Tightening torque 18 31 5AZ .

Lower and remove exhaust system with assistance of a second person.

Partially release cover at bottom if necessary.

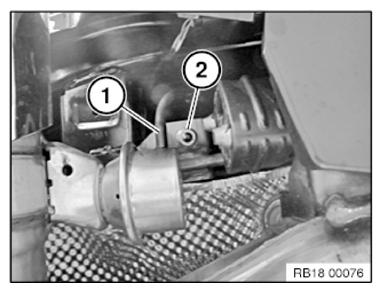

Fig 8: Identifying Pressure Hose And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check exhaust system for leaks.
