11 12 100 Removing and installing cylinder head (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

IMPORTANT: Fit new cylinder head bolts.
Do not wash off bolt coating.
Lightly oil washer on the contact surfaces (both sides).
There must be no coolant, water or engine oil in the blind holes.
Risk of cracking and corrosion.

Necessary preliminary tasks:

Remove EXHAUST SYSTEM .
Remove the CATALYTIC CONVERTER .
Remove TURBOCHARGER with integrated exhaust manifold.
Drain COOLANT .
Drain ENGINE OIL .
Remove intake PLENUM .
Detach coolant hoses from cylinder head.
Remove CYLINDER HEAD COVER .
Remove INTAKE AND EXHAUST CAMSHAFT ADJUSTERS .
Remove INJECTOR SHAFTS .

IMPORTANT: Secure eccentric shaft (1) with open-end spanner (3) (risk of return stroke).

Slowly adjust eccentric shaft (1) to minimum lift via servomotor using 4-mm hexagon socket wrench (2) and open-end spanner (3).

Fig 1: Adjusting Eccentric Shaft

Courtesy of BMW OF NORTH AMERICA, INC.

Position eccentric shaft in the middle between maximum stroke and minimum stroke.

Secure eccentric shaft (1) with special tool 11 7 170 .

The open-end spanner can now be removed.

Fig 2: Securing Eccentric Shaft With Special Tool (11 7 170)

Courtesy of BMW OF NORTH AMERICA, INC.

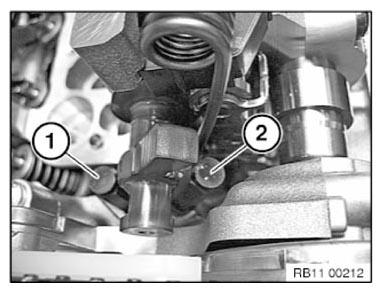

Remove maximum stroke limit position (2).

Tightening torque: 11 37 5AZ .

Fig 3: Identifying Stroke Limit Position

Courtesy of BMW OF NORTH AMERICA, INC.

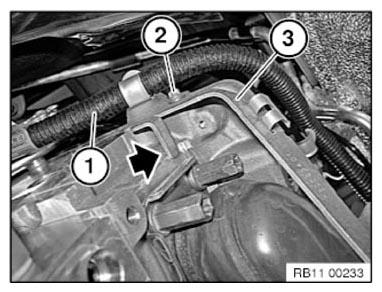

Unfasten engine wiring harness (1) at cylinder head cover.

Unscrew cable channel (2) from the cylinder head cover.

Unclip the cable channel (3) from the cylinder head cover.

Fig 4: Identifying Engine Wiring Harness And Cable Channels

Courtesy of BMW OF NORTH AMERICA, INC.

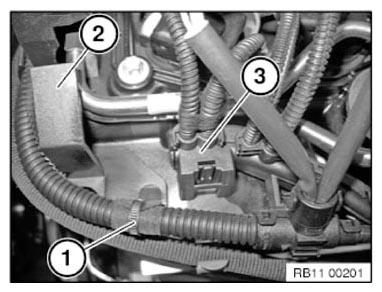

Unclip engine wiring harness (1).

Release screw (2).

Remove bracket (3).

Fig 5: Identifying Engine Wiring, Screw, And Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolts (1) from timing chain module on cylinder head.

Tightening torque 11 31 4AZ .

Remove upper chain module upwards.

Fig 6: Identifying Bolts

Courtesy of BMW OF NORTH AMERICA, INC.

Remove VIBRATION DAMPER .

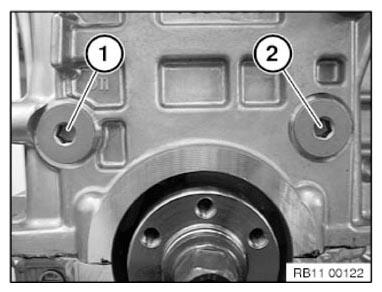

Open screw plug (2).

Tightening torque 11 11 7AZ .

Fig 7: Identifying Screw Plugs

Courtesy of BMW OF NORTH AMERICA, INC.

Release right bearing journal (1) from chain module for timing chain on crankcase.

Tightening torque 11 31 5AZ .

Fig 8: Identifying Right Bearing Journal

Courtesy of BMW OF NORTH AMERICA, INC.

Press chain module slightly to one side.

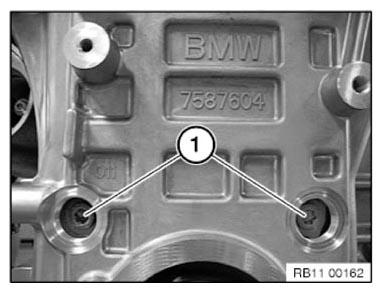

Release screws (1).

Tightening torque 11 12 3AZ .

Fig 9: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1).

Tightening torque 11 12 3AZ .

Fig 10: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

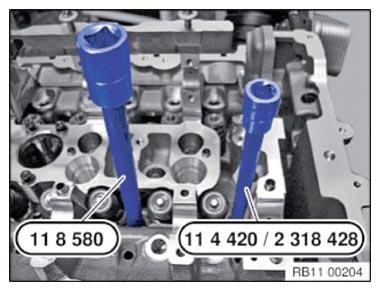

Various special tools are required for the cylinder head screw connection.

Screw M11 with special tool 11 8 580 .

Screw M9 with special tool 11 4 420 (old)

Screw M9 with special tool 2 318 428 (new)

Fig 11: Identifying Special Tools For Cylinder Head Screws

Courtesy of BMW OF NORTH AMERICA, INC.

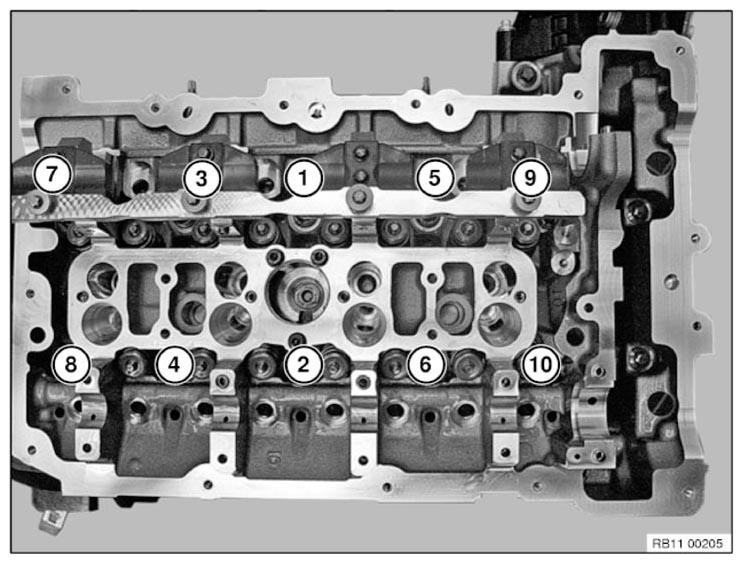

Release cylinder head bolts in sequence 10 to 7 with special tool 11 4 420 .

Release cylinder head bolts in sequence 6 to 1 with special tool 11 8 580 .

NOTE: Graphics show intermediate lever, intake and exhaust camshaft.

Fig 12: Cylinder Head Bolts Tightening/Loosening Sequence (N20, N26)

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Remove and install cylinder head with a second person helping.

Weight of cylinder head with add-on parts is approx. 40 kg.

Do not rest cylinder head on sealing surface. Risk of damage to valves.

Remove coarse residues on sealing surfaces with special tool 11 4 471 from cylinder head and crankcase.

IMPORTANT: Do not use any metal-cutting tools.

Fig 13: Removing Coarse Residues On Sealing Surfaces

Courtesy of BMW OF NORTH AMERICA, INC.

Remove fine residues on sealing surfaces with special tool 11 4 472 from cylinder head and crankcase.

IMPORTANT: Do not use any metal-cutting tools.
There must be no coolant, water or engine oil in the pocket holes.
Risk of cracking and corrosion.

Clean all blind holes.

Replace CYLINDER HEAD GASKET .

Fig 14: Identifying Special Tool (11 4 472)

Courtesy of BMW OF NORTH AMERICA, INC.

Fig 15: Cylinder Head Bolts Tightening/Loosening Sequence (N20, N26)

Courtesy of BMW OF NORTH AMERICA, INC.

Fit new cylinder head bolts.

Insert cylinder head bolts (1 to 6) with special tool 11 8 580 .

Tightening torque 11 12 1AZ .

Insert cylinder head bolts (7 to 10) with special tool 11 4 420 .

Tightening torque 11 12 2AZ .

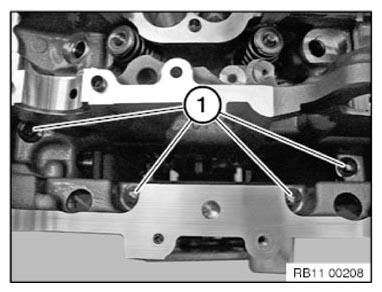

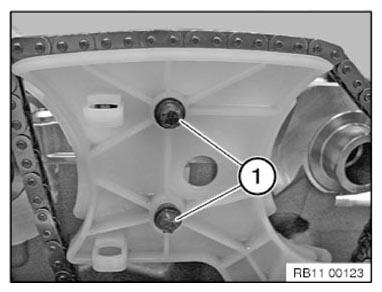

Insert bolts (1).

Tightening torque 11 12 3AZ .

Fig 16: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

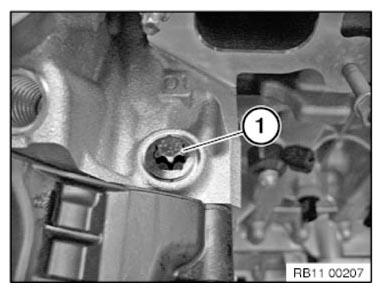

Insert screw (1).

Tightening torque 11 12 3AZ .

Fig 17: Identifying Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
