11 23 010 Removing and installing/replacing vibration damper (N20)

WARNING: This page does not describe the selected car, but rather 50 other vehicles, including the 2016 BMW M5, 2016 BMW ActiveHybrid 5, 2016 BMW 550i xDrive, 2016 BMW 550i, and 2016 BMW 535i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 9 260 .
11 8 180 .
22 2 742

Necessary preliminary tasks:

Remove DRIVE BELT .
Remove underbody protection at front and rear. See UNDERBODY PROTECTION (FRONT) and UNDERBODY PROTECTION (REAR) .

NOTE: Engine removed:

Block crankshaft with special tool 11 9 260 .

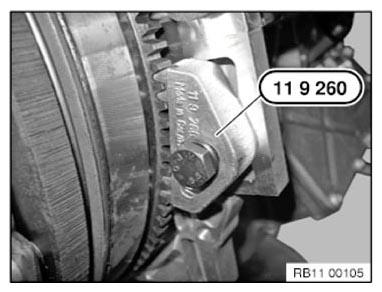

Fig 1: Securing Flywheel Using Special Tool (11 9 260)

G09920502

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Engine installed with manual transmission:

Block crankshaft with special tool 11 8 180 .

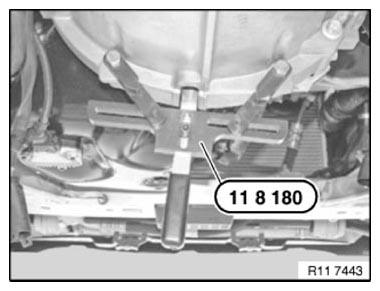

Fig 2: Blocking Crankshaft Using Special Tool (11 8 180)

G09920503

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Engine installed with automatic transmission:

Block crankshaft with special tool 22 2 742.

Feed in special tool, slide screw forward and tighten.

Fig 3: Blocking Crankshaft Using Special Tool (22 2 742)

G09920504

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove vibration damper.

Tightening torque 11 23 1AZ .

Fig 4: Identifying Vibration Damper Screws

G09920505

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
