11 34 560 Replacing all valve stem seals (N55)
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
Necessary preliminary work:
- Remove CYLINDER HEAD .
- Remove INTERMEDIATE LEVER
- Remove ECCENTRIC SHAFT
- Remove INTAKE CAMSHAFT
- Remove EXHAUST CAMSHAFT .
- Remove ROCKER ARMS

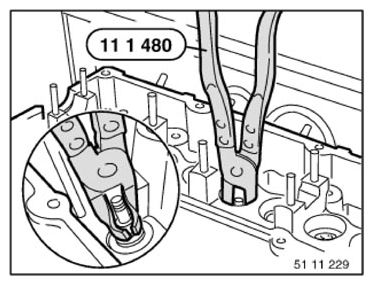

Firmly press special tool 11 1 480 onto old valve stem seals.
Detach valve stem seal from valve stem by turning and simultaneously pulling special tool 11 1 480 .
Installation:
Insert all VALVES .
NOTE:

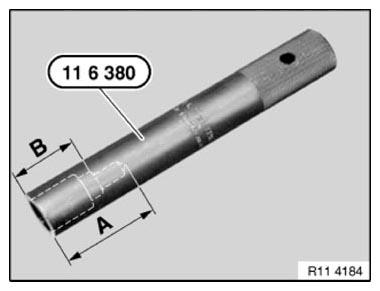

For use on the N55 engine, special tool 11 6 380
must be remachined according to the illustration with a 10 mm dia. drill bit to a depth of B = approx. 23 mm.
This modification has already been taken into account for reordering.
IMPORTANT:
Different diameters at valve stem.

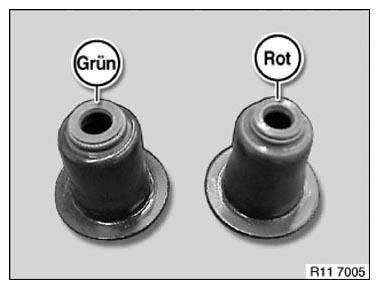

All valve stem seals are color-coded.
For 5 mm dia. valves, the valve stem seal is marked red or brown.
For 6 mm dia. valves, the valve stem seal is marked green.
Installation:
Fit the assembly sleeves (plastic sleeves) contained in the delivery specification on the valve stem end.
Lubricate assembly sleeve.

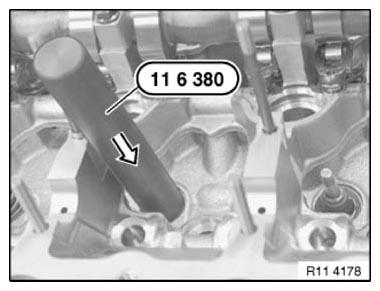

Press on valve stem seal by hand with special tool 11 6 380 as far as it will go.
NOTE:
Illustration shows N42.
Assemble engine.
