11 37 005 Removing and installing/replacing eccentric shaft (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

11 4 481

Necessary preliminary tasks:

Remove CYLINDER HEAD COVER .
Remove SERVOMOTOR FOR ECCENTRIC SHAFT DRIVE .
Remove INTERMEDIATE LEVER

NOTE: All bearing caps (1) of eccentric shaft are marked with numbers from 1 to 6 (1 for 1st cylinder to 6 for 6th cylinder).

Release screws on bearing caps 1 to 6 (1).

Set all bearing caps down in special tool 11 4 481 in a neat and orderly fashion.

Remove eccentric shaft with gentle tilting and swivel motion.

Place eccentric shaft on special tool 11 4 481 .

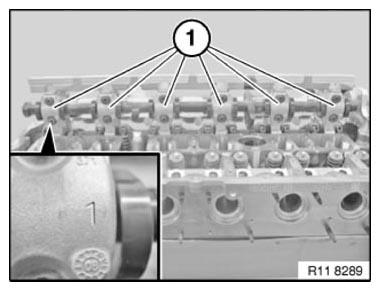

Fig 1: Identifying Eccentric Shaft Bearing Cap Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Needle bearings (1) can break very easily.

Installation note:

Replace eccentric shaft.

Carefully pull needle bearing (2) apart at point of separation.

Slide on all needle bearings (1) of eccentric shaft.

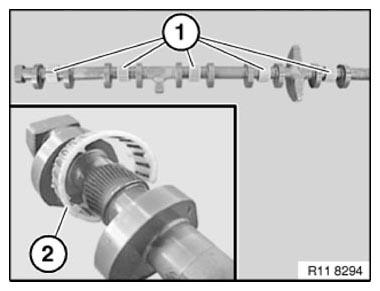

Fig 2: Identifying Eccentric Shaft Needle Bearings

Courtesy of BMW OF NORTH AMERICA, INC.

Install bearing shells (1) as pictured.

NOTE: If bearing shells need to be replaced due to a defect, always replace bearing shells (1) and needle bearings together.

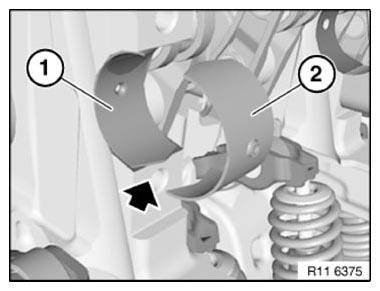

Fig 3: Locating Eccentric Shaft Bearing Shells

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Any installation position may be selected for bearing shells (1 and 2).

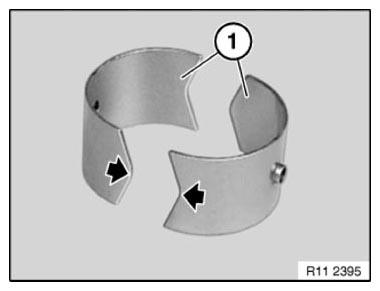

Fig 4: Locating Bearing Shell Tip

Courtesy of BMW OF NORTH AMERICA, INC.

If bearing shells (1) in cylinder head are inserted with tips pointing downward, the bearing shells (2) must be inserted in the opposite direction in the bearing cap (see example in illustration).

Installation note:

All bearing caps (1) of eccentric shaft are marked with numbers from 1 to 6 (1 for 1st cylinder to 6 for 6th cylinder).

Fig 5: Identifying Eccentric Shaft Bearing Cap Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Insert eccentric shaft.

Coat all bearing positions with engine oil.

Put on all bearing caps (1) according to cylinder assignment.

Insert all screws.

Tightening torque 11 31 2AZ .

Installation note:

Gearing of eccentric shaft must be greased with LONGTIME PD 1 (4.1) .

Check intermediate shaft for ease of movement.

Assemble engine.
