11 33 050 Removing and installing/replacing all rocker arms (N55)

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2015 BMW 740i, 2015 BMW 740Li xDrive, 2015 BMW 740Li, 2014 BMW 740i, and 2014 BMW 740Li xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Necessary preliminary work:

IMPORTANT: Roller cam followers (1) on intake side are divided into bearing classes.

The tolerance classes are marked according to the illustration in numbers from 1 to 5 .

Already used roller cam followers (1) may only be reused in the same position.

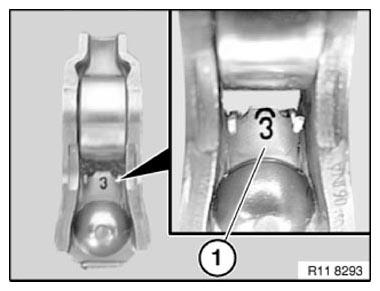

Fig 1: Identifying Roller Cam Follower (Intake Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Detach roller cam followers (1) from hydraulic valve clearance compensating element and remove.

Place all roller cam followers (1) in neat order on special tool 11 4 481 .

Installation note:

Prior to installation of intermediate levers, ensure proper installation position of roller cam followers (1).

Classification of roller cam follower intake.

Series: Number 3. standard.

Number 2. slow idle.

Number 4. fast idle.

In case of repair: rough idle.

Reparatur: 1

Number 1. slow speed in idle.

Number 5. high speed in idle.

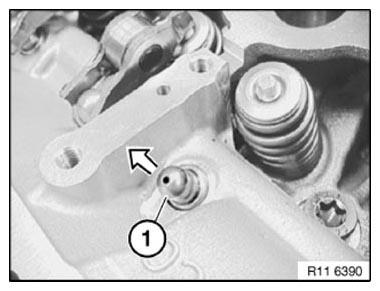

Fig 2: Locating Intake Roller Cam Follower Number

Courtesy of BMW OF NORTH AMERICA, INC.

Detach roller cam follower (1) on exhaust side from hydraulic valve clearance compensating element and remove.

Place all roller cam followers (1) in neat order on special tool 11 4 482 .

Installation note:

Prior to installation of exhaust camshaft, ensure proper installation position of roller cam followers (1).

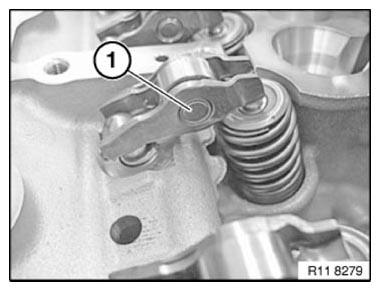

Fig 3: Identifying Cam Follower Rocker Arm

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hydraulic valve clearance compensating element (1) on intake side in direction of arrow.

Installation note:

If hydraulic valve clearance compensating elements (1) are reused, they must be placed together with rocker arms in neat order in special tool 11 4 481 .

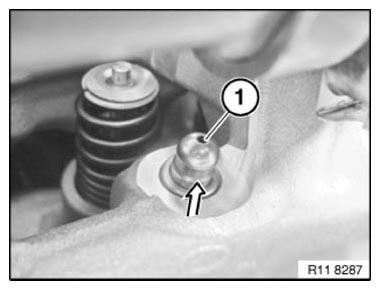

Fig 4: Locating Hydraulic Valve Clearance Compensating Element

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hydraulic valve clearance compensating element (1) on exhaust side in direction of arrow.

Installation note:

If hydraulic valve clearance compensating elements (1) are reused, they must be placed together with rocker arms in neat order in special tool 11 4 482 .

Fig 5: Removing Hydraulic Valve Clearance Compensating Element (Exhaust Side)

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME; if necessary, readjust uniform mixture distribution.
