11 34 715 Replacing all valve springs (N55)

Special tools required:

• 11 4 481
• 11 4 482
• 11 8 841
• 11 8 842
• 11 9 000
• 11 9 007

Necessary preliminary work:

• Remove CYLINDER HEAD .
• Remove EXHAUST CAMSHAFT .
• Remove INTERMEDIATE LEVER .
• Remove INTAKE CAMSHAFT .
• Remove ROCKER ARM .

Place cylinder head on special tool 11 9 000 .

Align special tool 11 9 007 on particular combustion chamber.

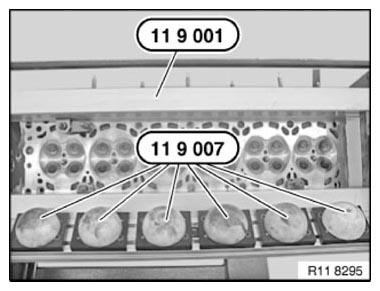

Fig 1: Aligning Special Tool (11 9 007) On Combustion Chamber

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 9 007 on cylinder head.

Push locks (1 and 2) toward inside and preload via eccentric shaft.

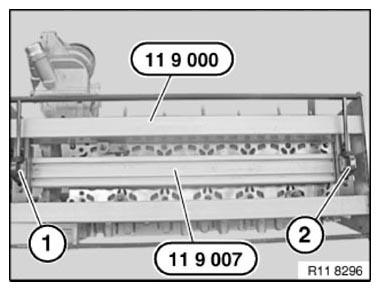

Fig 2: Positioning Special Tool (11 9 007) On Cylinder Head

Courtesy of BMW OF NORTH AMERICA, INC.

Press down intake valve  with special tool 11 8 841.

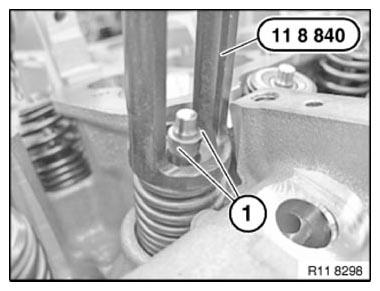

Fig 3: Pressing Down Intake Valve Using Special Tool (11 8 841)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove valve key (1) with a magnet.

Remove valve spring with spring cups.

If individual components are to be reused, they must be placed in neat order in special tool 11 4 481 .

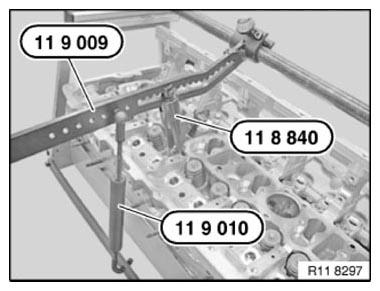

Fig 4: Placing Individual Components Into Special Tool (11 8 840)

Courtesy of BMW OF NORTH AMERICA, INC.

Press down discharge valve  with special tool 11 8 842.

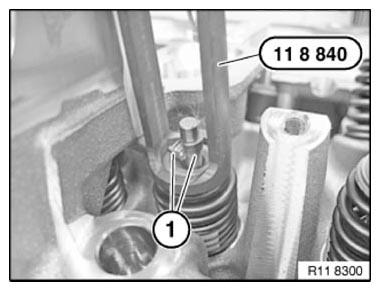

Fig 5: Pressing Down Discharge Valve Using Special Tool (11 8 842)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove valve key (1) with a magnet.

Remove valve spring with spring cups.

If individual components are to be reused, they must be placed in neat order in special tool 11 4 482 .

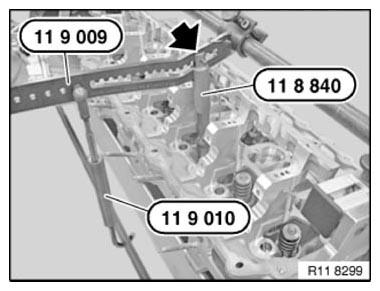

Fig 6: Identifying Valve Key

Courtesy of BMW OF NORTH AMERICA, INC.

Incorrect installation will result in valve spring breakage.

Risk of mixing up the valve springs for the inlet and exhaust valves.

Valve springs are marked in color (1).

Colors for intake valves:

• Green/blue
• Yellow/Blue

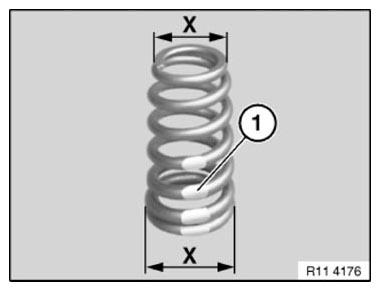

Fig 7: Identifying Valve Spring Color Mark
Courtesy of BMW OF NORTH AMERICA, INC.

Colors for discharge valves:

• Green/white
• Yellow/white

Install the valve spring so that the larger diameter points to the lower spring cup.

Arrangement:

1. Valve
2. Valve stem seal with lower spring cup
3. Valve spring
4. Upper spring cup
5. Valve keys

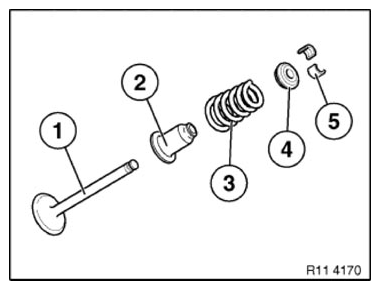

Fig 8: Exploded View Of Intake Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of DME; if necessary, readjust uniform mixture distribution.
