31 35 000 Removing and installing/replacing front stabilizer

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove FRONT ASSEMBLY UNDERSIDE PROTECTION
Remove FRONT V-STRUTS
Remove both STABILIZER LINKS FROM STABILIZER

Unscrew nuts (1).

Tightening torque 31 35 1AZ .

Remove stabilizer; if necessary, press off from engine carrier with a suitable tool.

Installation:

Check RUBBER MOUNT ON BOTH SIDES FOR DAMAGE , replace if necessary.

Replace self-locking nuts.

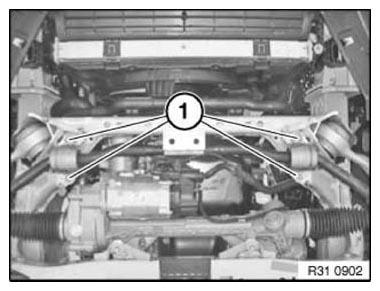

Fig 1: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remove RUBBER MOUNT ON BOTH SIDES FROM STABILIZER .
