31 35 040 Replacing rubber mount for stabilizer on body on left or right

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove STABILIZER ON BOTH SIDES FROM ENGINE CARRIER

Remove retaining bracket (1) and rubber mount (2) on both sides.

Installation:

Keep retaining bracket (1), rubber mount (2) and stabilizer clean and free from oil and grease.

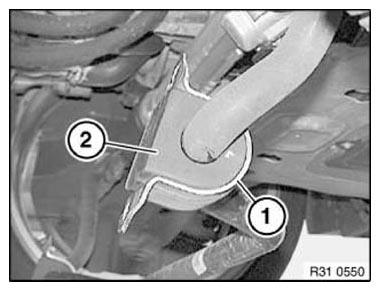

Fig 1: Identifying Retaining Bracket And Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.
