31 35 005 Removing and installing/replacing push rod (stabilizer link) for left/right stabilizer

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Release nut (1) and remove bracket for brake hose on spring strut.

Tightening torque 31 35 3AZ .

Release nut (3) and remove stabilizer link (2).

Tightening torque 31 35 2AZ .

Installation:

Replace self-locking nuts.

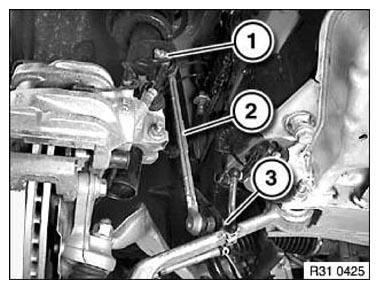

Fig 1: Identifying Anti-Roll Bar Link Nut

Courtesy of BMW OF NORTH AMERICA, INC.
