51 61 011 Removing and installing/replacing V-strut, front axle carrier, left or right
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Observe safety instructions for raising the vehicle
Driving without V-struts is not permitted!
Necessary preliminary tasks:
- Remove FRONT UNDERBODY PROTECTION

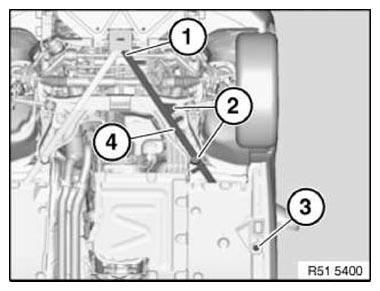

Release bolt (1).
Tightening torque 51 71 10AZ .
Release bolt (2).
Tightening torque 51 71 10AZ .
Release bolt (3).
Tightening torque 51 71 10AZ .
Remove V-strut (4) towards front.
Installation:
Replace bolts.
Make sure bolts are installed in correct positions.
- Bolt (1) M12x30
- Bolt (2) M10x33
- Bolt (3) M10x45
