51 16 213 Replacing trim for storage compartment

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove TRIM FOR STORAGE COMPARTMENT
Remove SWITCH FOR PARKING BRAKE
Remove CONTROLLER
Remove DRIVING DYNAMICS SWITCH
Remove ROOF OPERATING UNIT

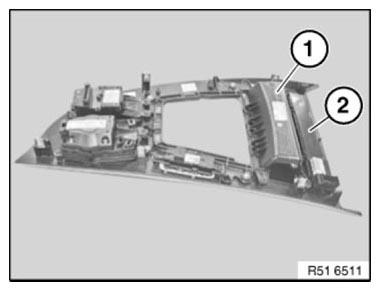

Unscrew storage compartment (1) from trim for storage compartment (2).

Fig 1: Identifying Storage Compartment

Courtesy of BMW OF NORTH AMERICA, INC.
