51 16 212 Removing and installing trim for storage compartment
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:

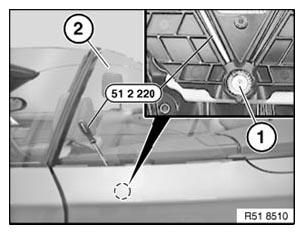

Lever off gaiter trim (1) upwards with special tool 00 9 317 .
Lever off trim for storage compartment (2) towards top.
Unlock cable connections underneath and disconnect.
Remove trim for storage compartment (2).
