61 31 043 Removing and installing/replacing roof switch cluster

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Read and comply with notes on PROTECTION AGAINST ELECTROSTATIC DISCHARGE (ESD PROTECTION) .

Carefully lever out roof switch center (1) with special tool 00 9 317 and lower slightly.

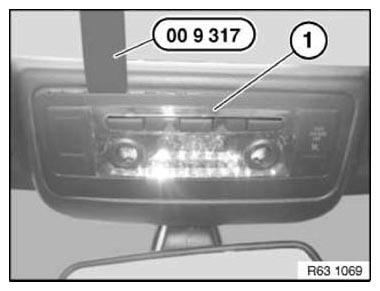

Fig 1: Removing Roof Switch Center Using Special Tool (00 9 317)

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining clips (1) and feed out roof switch center in direction of arrow.

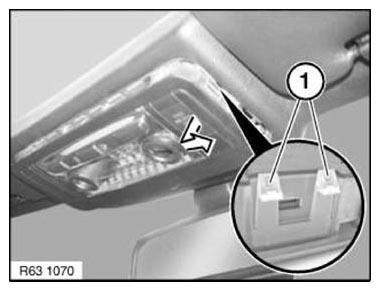

Fig 2: Removing Roof Switch Center

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connections (1) and remove roof switch center.

IMPORTANT: Disconnecting the plug connection for the hands-free microphone or emergency SOS call button results in fault memory entries in the telephone control unit (limitation in the emergency SOS call system).
After fitting, read out fault memory and if necessary delete entries.

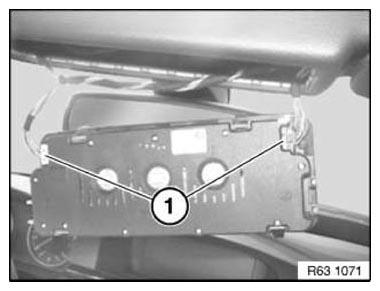

Fig 3: Identifying Roof Switch Center Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

If necessary, remove BULBS .

Carry out VEHICLE PROGRAMMING/CODING .
