61 31 195 Removing and installing/replacing controller

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Risk of damage!
The button for the controller must not be removed!

Necessary preliminary tasks:

Remove TRIM FOR STORAGE TRAY

IMPORTANT: Risk of damage!

Carefully raise catches (1) on controller holder (3) and remove controller (2) towards top.

Installation:

Make sure controller (2) is correctly engaged in controller holder (3).

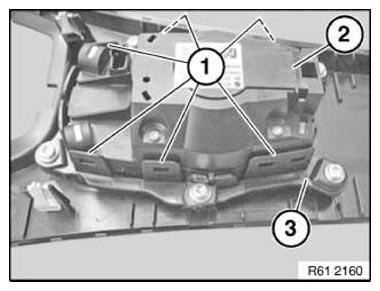

Fig 1: Identifying Controller, Holder And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Carry out VEHICLE PROGRAMMING/ENCODING .
