51 41 001 Replacing left or right front door trim panel
WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove DOOR TRIM PANEL
- Remove BOWDEN CABLE
- Remove switch center. See REPLACING POWER WINDOW SWITCH (DRIVER'S SIDE) or REPLACING FRONT PASSENGER POWER WINDOW SWITCH
- Remove SPEAKER COVER
- Remove STORAGE COMPARTMENT
- Remove INSIDE DOOR OPENER
- If necessary, remove FOOTWELL LIGHT
- If necessary, remove ANTITHEFT ALARM INDICATOR
- Remove LED IN DOOR TRIM PANEL

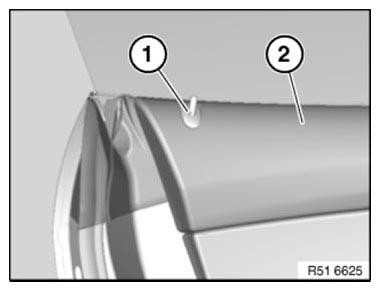

Lever out locking button cover (1) from door shoulder (2) with a suitable tool.
