61 31 118 Replacing front passenger power window switch

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Carefully lever out rocker switch (1) in area (2) with special tool 00 9 323 .

Feed rocker switch (1) out of door trim panel (3).

Unlock associated plug connection and disconnect.

remove rocker switch (1).

Installation:

Make sure rocker switch (1) is exactly seated.

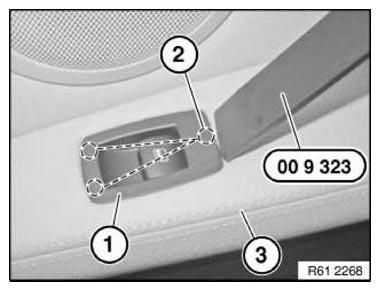

Fig 1: Removing Rocker Switch Using Special Tool (00 9 323)
G11153261Courtesy of BMW OF NORTH AMERICA, INC.
