61 31 117 Removing and installing/replacing power window switch (driver's side)

WARNING: This page is about a different car, the 2016 BMW Z4, 2015 BMW Z4, and 2014 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

Raise rocker switch (1) with special tool 00 9 317 .

Feed rocker switch (1) out of door trim panel (2).

Unlock associated plug connection and disconnect.

Installation:

Make sure rocker switch (1) is correctly seated.

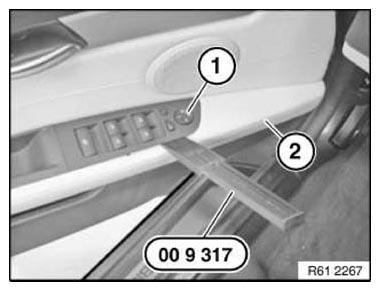

Fig 1: Lifting Rocker Switch Using Special Tool (00 9 317)
G11153240Courtesy of BMW OF NORTH AMERICA, INC.
