51 11 141 Removing and installing/replacing bumper panel at bottom front

Necessary preliminary tasks:

Version with Park Distance Control:

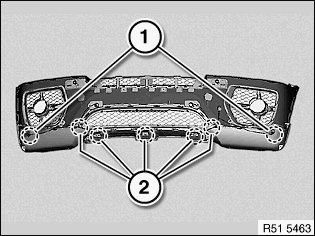

Disconnect plug connection (1).

Remove cable from holders (2).

Fig 1: Locating Connectors And Cable Holders

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The operation is described on the left side; proceed in the same way for the right side.

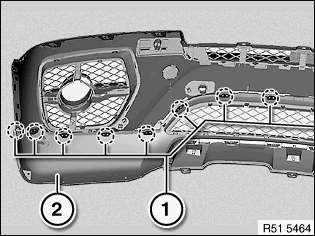

Release all catches (1) on left and right.

Remove the bottom bumper panel (2).

Installation note:

Latch mechanisms (1) must not be damaged.

Fig 2: Identifying Bumper Panel And Catches

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Version with Park Distance Control (PDC):
