66 20 515 Removing and installing/replacing a front left ultrasonic transducer

Necessary preliminary tasks:

• Remove grille in bumper trim  at front left, see 51 11 185 REMOVING AND INSTALLING/REPLACING GRILLE (SIDE) IN BUMPER TRIM .

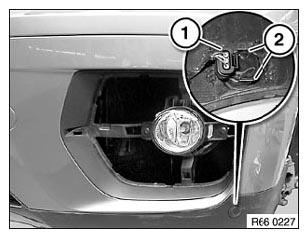

Disconnect plug connection (1) and unclip ultrasonic transducer from retaining tabs (2).

Installation:

Retaining tabs (2) must not be damaged!

Make sure ultrasonic transducer is securely seated.

Fig 1: Identifying Plug Connection And Retaining Tabs (Front Left Ultrasonic Transducer)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

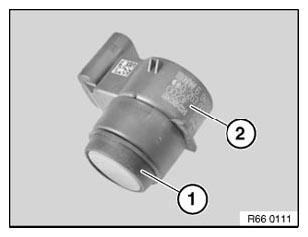

Make sure rubber ring (1) is correctly seated on ultrasonic transducer (2).

Fig 2: Identifying Rubber Ring On Ultrasonic Transducer

Courtesy of BMW OF NORTH AMERICA, INC.
