66 20 518 Removing and installing/replacing a front ultrasonic transducer (center)

Necessary preliminary tasks:

• Remove front bumper trim  , see 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

Disconnect plug connection (1) and unclip ultrasonic transducer from retaining tabs (2).

Installation:

Retaining tabs (2) must not be damaged!

Make sure ultrasonic transducer is securely seated.

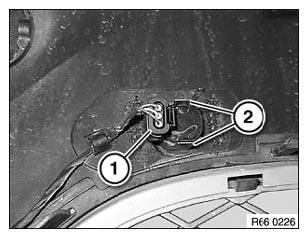

Fig 1: Identifying Plug Connection And Retaining Tabs - Front Ultrasonic Transducer (Centre)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure rubber ring (1) is correctly seated on ultrasonic transducer (2).

Fig 2: Identifying Rubber Ring On Ultrasonic Transducer

Courtesy of BMW OF NORTH AMERICA, INC.
