51 31 201 Adjusting rear window

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove REAR SPOILER

Prerequisite:

TAILGATE . must be correctly adjusted

IMPORTANT: Rear window hinge is under preload!

Slacken but do not release nuts (1) for rear window bracket (2).

Fig 1: Rear Window Bracket And Nuts

G10153629

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust rear window (1) according to BODY GAP DIMENSIONS . and fix in position with nuts (2).

Tightening torque: 51 31 1 AZ .

Fig 2: Adjusting Rear Window

G05506615

Courtesy of BMW OF NORTH AMERICA, INC.

Bottom underprotrusion settings:

Determine underprotrusion (x) between body edge and rear window.

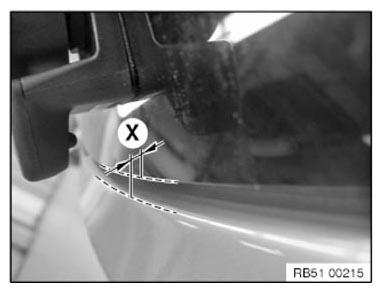

Fig 3: Body Edge And Rear Window Underprotrusion

G10153631

Courtesy of BMW OF NORTH AMERICA, INC.

Release lock nut (1) of lock bracket (2).

Adjust underprotrusion (x) by turning lock bracket (2).

Installation note:

Always lock the lock bracket (2) in correct position for locking rear window.

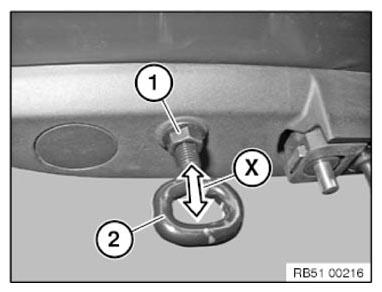

Fig 4: Adjusting Underprotrusion

G10153632

Courtesy of BMW OF NORTH AMERICA, INC.
