51 31 200 Removing and installing/replacing rear window

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2016 BMW 328i xDrive, 2016 BMW 328d xDrive, 2015 BMW 328i xDrive, 2015 BMW 328d xDrive, and 2014 BMW 328i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove AERIAL AMPLIFIER

Disconnect plug connection (1).

Lever out clip (2).

Release nut (3) and remove holder for wiring harness.

Feed out wiring harness (4) from rear window.

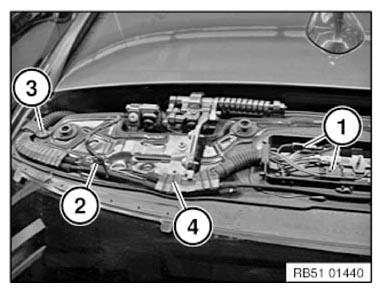

Fig 1: Rear Window Wiring Harness, Plug Connection, Clip And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Rear window hinge is under preload!
To release rear window lock nuts, open completely!

NOTE: Rear window shown closed here for purposes of clarity.

Unscrew nuts (1).

Tightening torque: 51 31 1 AZ .

Carefully remove rear window (2) with another person and place it on a soft surface.

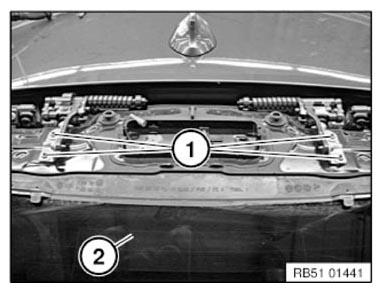

Fig 2: Rear Window Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Concluding tasks:

Check and, if necessary, correct REAR WINDOW SETTING .

Replacement:

Modify REAR-WINDOW BUTTON

IMPORTANT: If the rear window is broken:

Remove all glass splinters, also from underneath seats.
Check seat belts:
- Condition of seat belt strap
- Function of automatic reel
- Seat belt locking reel
- Check seat belt buckle
If the vehicle is equipped with a roller cover for luggage compartment, check the housing box for glass splinters and ensure that the automatic reel is functioning properly.
